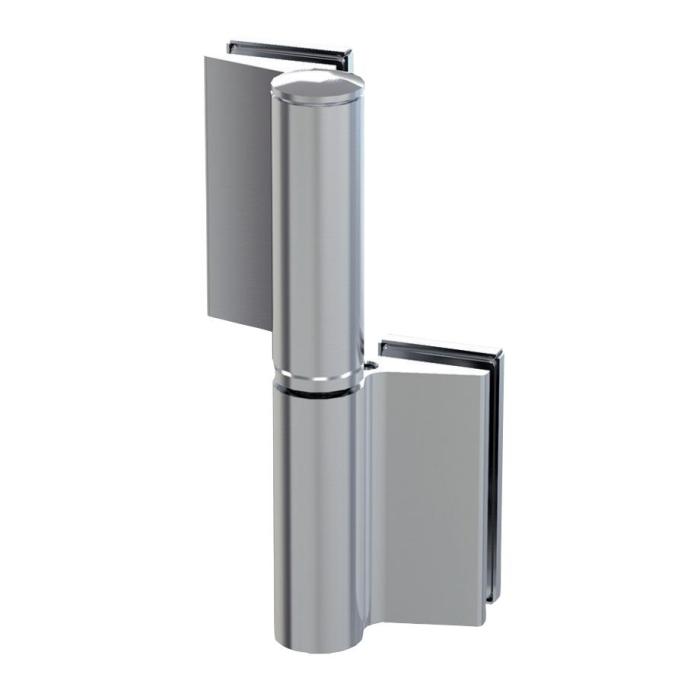

Hydraulic hinges EVO
Revolutionary technology: EVO, the hinge with integrated door closer for single-action doors. The adjustable closing speed and the continuous braking of the door is an innovation in the world of glass. Wall and glass installations are possible and EVO hinges even fit into our popular Augusta frame profile! Glass thicknesses of up to 21.52mm and a door weight of up to 120kg per pair leave nothing to be desired. The EVO hydraulic hinge is tested and certified in accordance with the EN 1154:2006 norm.
- for doors in indoor and protected outdoor areas
- integrated door closer
- adjustable closing speed
- wall and glass mounting
- suitable for our Augusta frame profile
- up to 120kg door weight per pair
- tested for 500,000 cycles
- no visible screws
Hydraulic hinge EVO EV 835E10 N with integrated door closer, self-closing from an opening angle of 80°
aluminium, 8 - 19 / 21.52 mm, 120 kg/pair
aluminium, 8 - 19 / 21.52 mm, 120 kg/pair
Art. N° | Finish | Mounting | Unit price | |
---|---|---|---|---|
31.80301.21 | chrome effect | glass/wall, DIN right | CHF 326.00 / unit | |
31.80301.24 | inox effect | glass/wall, DIN right | CHF 354.00 / unit | |
31.80301.27 | black anodized | glass/wall, DIN right | CHF 318.00 / unit | |
31.80301.63 | anodized 20 micron | glass/wall, DIN right | CHF 337.50 / unit | |
31.80302.21 | chrome effect | glass/wall, DIN left | CHF 326.00 / unit | |
31.80302.24 | inox effect | glass/wall, DIN left | CHF 354.00 / unit | |
31.80302.27 | black anodized | glass/wall, DIN left | CHF 318.00 / unit | |
31.80302.63 | anodized 20 micron | glass/wall, DIN left | CHF 337.50 / unit |
Hydraulic hinge EVO EV 835E11 N with integrated door closer, self-closing from an opening angle of 160°
aluminium, 8 - 19 / 21.52 mm, 120 kg/pair
aluminium, 8 - 19 / 21.52 mm, 120 kg/pair
Art. N° | Finish | Mounting | Unit price | |
---|---|---|---|---|
31.80303.21 | chrome effect | glass/wall, DIN right | CHF 285.00 / unit | |
31.80303.24 | inox effect | glass/wall, DIN right | CHF 373.00 / unit | |
31.80303.27 | black anodized | glass/wall, DIN right | CHF 321.50 / unit | |
31.80303.63 | anodized 20 micron | glass/wall, DIN right | CHF 308.00 / unit | |
31.80304.21 | chrome effect | glass/wall, DIN left | CHF 285.00 / unit | |
31.80304.24 | inox effect | glass/wall, DIN left | CHF 373.00 / unit | |
31.80304.27 | black anodized | glass/wall, DIN left | CHF 321.50 / unit | |
31.80304.63 | anodized 20 micron | glass/wall, DIN left | CHF 308.00 / unit |
Hydraulic hinge EVO EV 835E11 N with integrated door closer, self-closing from an opening angle of 80°
aluminium, 8 - 19 / 21.52 mm, 100 kg/pair
aluminium, 8 - 19 / 21.52 mm, 100 kg/pair
Art. N° | Finish | Mounting | Unit price | |
---|---|---|---|---|
31.80305.21 | chrome effect | glass/glass, DIN right | CHF 311.50 / unit | |
31.80305.24 | inox effect | glass/glass, DIN right | CHF 398.50 / unit | |
31.80305.27 | black anodized | glass/glass, DIN right | CHF 353.50 / unit | |
31.80305.63 | anodized 20 micron | glass/glass, DIN right | CHF 354.00 / unit | |
31.80306.21 | chrome effect | glass/glass, DIN left | CHF 311.50 / unit | |
31.80306.24 | inox effect | glass/glass, DIN left | CHF 398.50 / unit | |
31.80306.27 | black anodized | glass/glass, DIN left | CHF 353.50 / unit | |
31.80306.63 | anodized 20 micron | glass/glass, DIN left | CHF 354.00 / unit |
Hydraulic hinge EVO EV 835E51 with integrated door closer, self-closing from an opening angle of 160°
aluminium, 8 - 19 / 21.52 mm, 100 kg/pair
aluminium, 8 - 19 / 21.52 mm, 100 kg/pair
Art. N° | Finish | Mounting | Unit price | |
---|---|---|---|---|
31.80307.21 | chrome effect | glass/glass, DIN right | CHF 365.50 / unit | |
31.80307.24 | inox effect | glass/glass, DIN right | CHF 403.50 / unit | |
31.80307.27 | black anodized | glass/glass, DIN right | CHF 362.50 / unit | |
31.80307.63 | anodized 20 micron | glass/glass, DIN right | CHF 358.50 / unit | |
31.80308.21 | chrome effect | glass/glass, DIN left | CHF 365.50 / unit | |
31.80308.24 | inox effect | glass/glass, DIN left | CHF 403.50 / unit | |
31.80308.27 | black anodized | glass/glass, DIN left | CHF 362.50 / unit | |
31.80308.63 | anodized 20 micron | glass/glass, DIN left | CHF 358.50 / unit |
Free-running hinge EVO EV 835E10 N SOL
aluminium, 8 - 19 / 21.52 mm, 100 kg/pair
aluminium, 8 - 19 / 21.52 mm, 100 kg/pair
Art. N° | Finish | Mounting | Unit price | |
---|---|---|---|---|
31.80309.21 | chrome effect | glass/wall, DIN right | CHF 217.00 / unit | |
31.80309.24 | inox effect | glass/wall, DIN right | CHF 259.50 / unit | |
31.80309.27 | black anodized | glass/wall, DIN right | CHF 209.00 / unit | |
31.80309.63 | anodized 20 micron | glass/wall, DIN right | CHF 224.50 / unit | |
31.80310.21 | chrome effect | glass/wall, DIN left | CHF 217.00 / unit | |
31.80310.24 | inox effect | glass/wall, DIN left | CHF 259.50 / unit | |
31.80310.27 | black anodized | glass/wall, DIN left | CHF 209.00 / unit | |
31.80310.63 | anodized 20 micron | glass/wall, DIN left | CHF 224.50 / unit |
Free-running hinge EVO EV 835E50 SOL
aluminium, 8 - 19 / 21.52 mm, 100 kg/pair
aluminium, 8 - 19 / 21.52 mm, 100 kg/pair
Art. N° | Finish | Mounting | Unit price | |
---|---|---|---|---|
31.80311.21 | chrome effect | glass/glass, DIN right | CHF 218.00 / unit | |
31.80311.24 | inox effect | glass/glass, DIN right | CHF 275.00 / unit | |
31.80311.63 | anodized 20 micron | glass/glass, DIN right | CHF 224.50 / unit | |
31.80312.21 | chrome effect | glass/glass, DIN left | CHF 218.00 / unit | |
31.80312.24 | inox effect | glass/glass, DIN left | CHF 275.00 / unit | |
31.80312.63 | anodized 20 micron | glass/glass, DIN left | CHF 224.50 / unit |
