Partitioning system AUGUSTA
Our partition wall system Augusta convinces with its quick assembly and high flexibility.
All configurations are possible, from classic doors to sophisticated office glazing.
With new profiles, new seals and a new glass door hinge with an opening angle of 180°, the glass door frames are extremely reliable.
We produce all frames and door frames according to your plans.
Your fixed glazing system is made to measure for you and delivered within a few days.
All RAL colours and special surfaces are available on request.
Our Augusta glass partition system is manufactured in Switzerland.
Please note that our AUGUSTA partition wall profile set must be ordered in individual parts. For a complete frame you need: fixed glazing profile, clip profile, inner & outer seals and corner connectors. Optionally, you can order the matching block timbers and countersunk screws for connection to doors or mullions.
Please note that our AUGUSTA partition wall profile set must be ordered in individual parts. For a complete frame you need: fixed glazing profile, clip profile, inner & outer seals and corner connectors. Optionally, you can order the matching block timbers and countersunk screws for connection to doors or mullions.

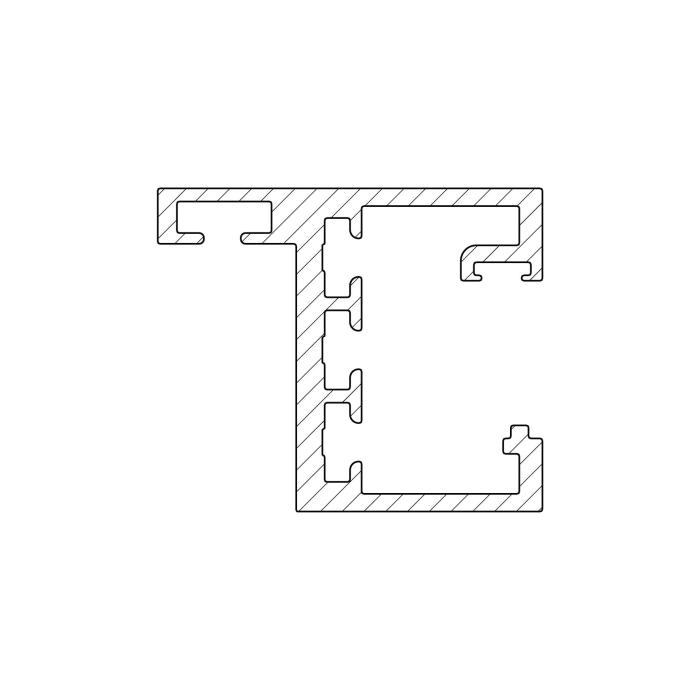

Festverglasungsprofil AUGUSTA
26.5 x 42 mm, aluminium, 8 / 10 / 12 mm, L = 6040 mm
26.5 x 42 mm, aluminium, 8 / 10 / 12 mm, L = 6040 mm
Art. N° | Finish | Unit price | |
---|---|---|---|
97.46085.22 | natural anodized EV1 | CHF 39.00 / metre | |
97.46085.24 | inox effect | CHF 55.00 / metre | |
97.46085.27 | BlackLine RAL 9005 matt | CHF 49.00 / metre |
Clipprofil AUGUSTA
19.5 x 16.5 mm, aluminium, 8 / 10 / 12 mm, L = 6040 mm
19.5 x 16.5 mm, aluminium, 8 / 10 / 12 mm, L = 6040 mm
Art. N° | Finish | Unit price | |
---|---|---|---|
97.46086.22 | natural anodized EV1 | CHF 14.00 / metre | |
97.46086.24 | inox effect | CHF 19.00 / metre | |
97.46086.27 | BlackLine RAL 9005 matt | CHF 20.50 / metre |
Äussere Dichtung AUGUSTA für Festverglasungsprofil
TPE, 8 / 10 mm
TPE, 8 / 10 mm
Art. N° | Finish | Bar length (L) | Unit price | |
---|---|---|---|---|
61.46098.76 | black | 6000 mm | CHF 7.50 / metre | |
61.46097.76 | black | 25000 mm | CHF 5.00 / metre | |
61.46098.77 | grey | 6000 mm | CHF 7.50 / metre | |
61.46097.77 | grey | 25000 mm | CHF 5.00 / metre |
Äussere Dichtung AUGUSTA für Festverglasungsprofil
TPE, 12 mm
TPE, 12 mm
Art. N° | Finish | Bar length (L) | Unit price | |
---|---|---|---|---|
61.46099.76 | black | 6000 mm | CHF 8.50 / metre | |
61.46096.76 | black | 25000 mm | CHF 6.00 / metre | |
61.46099.77 | grey | 6000 mm | CHF 7.50 / metre | |
61.46096.77 | grey | 25000 mm | CHF 5.00 / metre |
Innere Dichtung für Festverglasungsprofil AUGUSTA
TPE
TPE
Art. N° | Finish | Glass thickness | Bar length (L) | Unit price | |
---|---|---|---|---|---|
61.46107.76 | black | 8 mm | 6000 mm | CHF 7.50 / metre | |
61.46102.76 | black | 8 mm | 25000 mm | CHF 5.00 / metre | |
61.46107.77 | grey | 8 mm | 6000 mm | CHF 7.50 / metre | |
61.46102.77 | grey | 8 mm | 25000 mm | CHF 5.00 / metre | |
61.46108.76 | black | 10 / 12 mm | 6000 mm | CHF 7.50 / metre | |
61.46103.76 | black | 10 / 12 mm | 25000 mm | CHF 5.00 / metre | |
61.46108.77 | grey | 10 / 12 mm | 6000 mm | CHF 7.50 / metre | |
61.46103.77 | grey | 10 / 12 mm | 25000 mm | CHF 5.00 / metre |

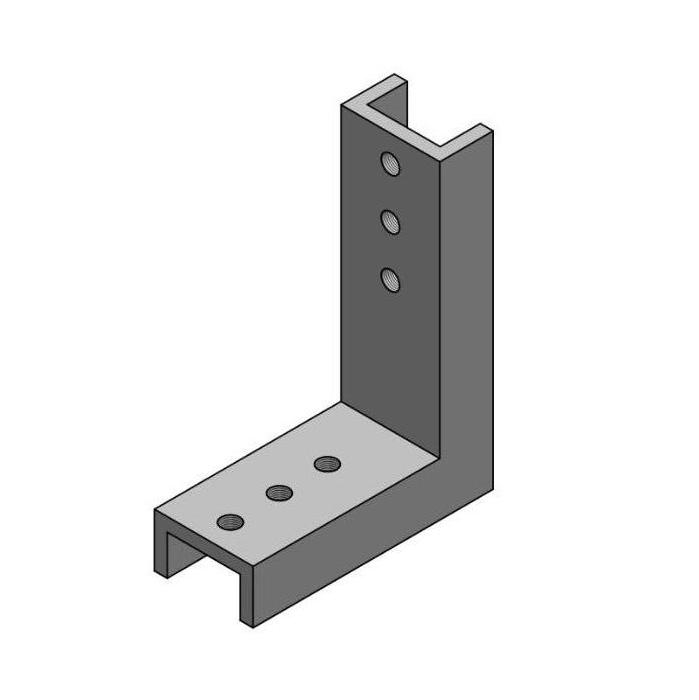

Befestigungswinkel mit Gewindestiften für Festverglasungsprofil AUGUSTA, Pack à 4 Stück
30 x 30 x 12.8 x 3 mm, brass
30 x 30 x 12.8 x 3 mm, brass
Art. N° | Finish | Unit price | |
---|---|---|---|
97.04633.08 | nickeled polished | CHF 16.00 / Pack |

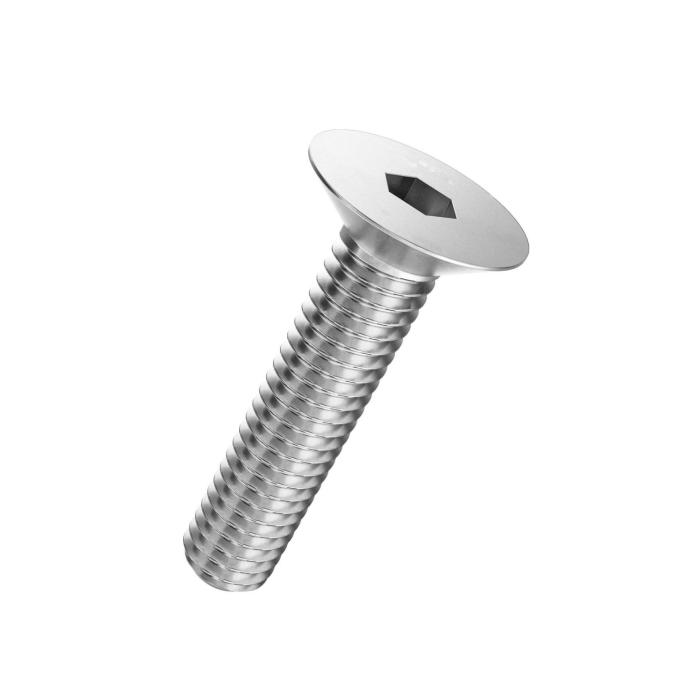

Senkschraube mit Innensechsrund für AUGUSTA, Pack à 20 Stück
M4 x 8 mm, inox V2A, M4
M4 x 8 mm, inox V2A, M4
Art. N° | Finish | Unit price | |
---|---|---|---|
03.50001.15 | raw | CHF 3.75 / Pack |
Augusta Klotzholz imprägniert, Pack à 20 Stück
80 x 12 x 10 mm, wood
80 x 12 x 10 mm, wood
Art. N° | Finish | Unit price | |
---|---|---|---|
70.76089.80 | black | CHF 1.40 / Pack |
AUGUSTA Schnitt-Set für 1 Rahmen Festverglasungsprofil inkl. Tür
Art. N° | Finish | Unit price | |
---|---|---|---|
04.10014.99 | CHF 150.00 / unit |
AUGUSTA Schnitt-Set für 1 einfachen Rahmen Festverglasungsprofil
Art. N° | Finish | Unit price | |
---|---|---|---|
04.10017.99 | CHF 100.00 / unit |
Zargenprofil-Set AUGUSTA, für eine Tür, mit Eckwinkel, Fräsung für Schliessfenster, Bohrungen für Scharniere, graue Dichtungen
28 x 42 mm, aluminium, custom-made
28 x 42 mm, aluminium, custom-made
Art. N° | Finish | Glass thickness | Unit price | |
---|---|---|---|---|
97.46410.22 | natural anodized EV1 | 8 mm | CHF 420.00 / unit | |
97.46410.24 | inox effect | 8 mm | CHF 495.00 / unit | |
97.46411.22 | natural anodized EV1 | 10 - 12.76 mm | CHF 420.00 / unit | |
97.46411.24 | inox effect | 10 - 12.76 mm | CHF 495.00 / unit |
Zargenprofil-Set AUGUSTA, für eine Tür, mit Eckwinkel, Fräsung für Schliessfenster, Bohrungen für Scharniere, schwarze Dichtungen
28 x 42 mm, aluminium, custom-made
28 x 42 mm, aluminium, custom-made
Art. N° | Finish | Glass thickness | Unit price | |
---|---|---|---|---|
97.46412.22 | natural anodized EV1 | 8 mm | CHF 420.00 / unit | |
97.46412.24 | inox effect | 8 mm | CHF 495.00 / unit | |
97.46412.27 | BlackLine RAL 9005 matt | 8 mm | CHF 495.00 / unit | |
97.46413.22 | natural anodized EV1 | 10 - 12.76 mm | CHF 420.00 / unit | |
97.46413.24 | inox effect | 10 - 12.76 mm | CHF 495.00 / unit | |
97.46413.27 | BlackLine RAL 9005 matt | 10 - 12.76 mm | CHF 495.00 / unit |
AUGUSTA frame profile for wall connection
28 x 42 mm, aluminium, wall assembly, 8 - 10.76 mm, L = 5500 mm
28 x 42 mm, aluminium, wall assembly, 8 - 10.76 mm, L = 5500 mm
Art. N° | Finish | Unit price | |
---|---|---|---|
97.46084.22 | natural anodized EV1 | CHF 39.00 / metre | |
97.46084.24 | inox effect | CHF 55.00 / metre | |
97.46084.27 | BlackLine RAL 9005 matt | CHF 49.00 / metre |
Dichtungsgummi zu Zargenprofil AUGUSTA
TPE, L = 5500 mm
TPE, L = 5500 mm
Art. N° | Finish | Glass thickness | Unit price | |
---|---|---|---|---|
61.46105.77 | grey | 8 mm | CHF 7.50 / metre | |
61.46105.76 | black | 8 mm | CHF 7.50 / metre | |
61.46106.77 | grey | 10 mm | CHF 7.50 / metre | |
61.46106.76 | black | 10 mm | CHF 7.50 / metre |

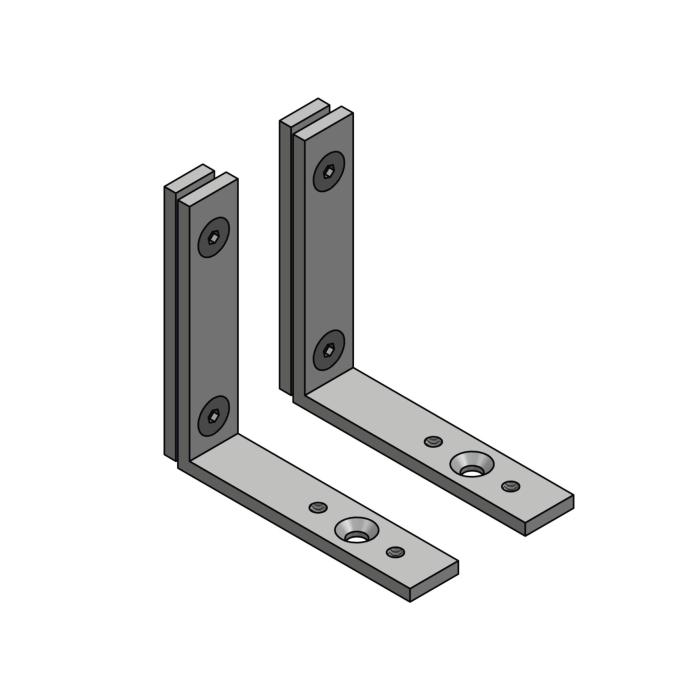

Befestigungswinkel mit Gewindestiften für Zargenprofil Augusta, Pack à 4 Stück
30 x 30 x 10 x 3 mm, brass
30 x 30 x 10 x 3 mm, brass
Art. N° | Finish | Unit price | |
---|---|---|---|
97.04635.08 | nickeled polished | CHF 15.00 / Pack |
AUGUSTA Abdeckprofil
42 x 3 mm, aluminium, to glue, L = 6040 mm
42 x 3 mm, aluminium, to glue, L = 6040 mm
Art. N° | Finish | Unit price | |
---|---|---|---|
97.46087.22 | natural anodized EV1 | CHF 24.00 / metre | |
97.46087.24 | inox effect | CHF 31.00 / metre | |
97.46087.27 | BlackLine RAL 9005 matt | CHF 30.00 / metre |
Partition profile AUGUSTA INDUSTRIAL STYLE
aluminium, glass assembly, to glue, 8 - 12.76 mm
aluminium, glass assembly, to glue, 8 - 12.76 mm
Art. N° | Finish | Measures | Bar length (L) | Unit price | |
---|---|---|---|---|---|
97.46092.27 | BlackLine RAL 9005 matt | 30 x 1.5 mm | 2000 mm | CHF 32.00 / metre | |
97.46089.27 | BlackLine RAL 9005 matt | 25 x 10 mm | 6000 mm | CHF 35.20 / metre |
Glastür-Rahmenprofil AUGUSTA INDUSTRIAL STYLE
27 x 10.8 x 27 mm, aluminium, 6 - 8 mm, L = 6040 mm
27 x 10.8 x 27 mm, aluminium, 6 - 8 mm, L = 6040 mm
Art. N° | Finish | Unit price | |
---|---|---|---|
97.46088.22 | natural anodized EV1 | CHF 23.00 / metre | |
97.46088.24 | inox effect | CHF 31.00 / metre | |
97.46088.27 | BlackLine RAL 9005 matt | CHF 30.00 / metre |
Pfostenprofil AUGUSTA 2-seitig 90°
42 x 42 mm, aluminium, screwed on, L = 5500 mm
42 x 42 mm, aluminium, screwed on, L = 5500 mm
Art. N° | Finish | Unit price | |
---|---|---|---|
97.46076.22 | natural anodized EV1 | CHF 55.00 / metre | |
97.46076.24 | inox effect | CHF 65.00 / metre | |
97.46076.27 | BlackLine RAL 9005 matt | CHF 65.00 / metre |
Pfostenprofil AUGUSTA 2-seitig 180°
42 x 42 mm, aluminium, screwed on, L = 5500 mm
42 x 42 mm, aluminium, screwed on, L = 5500 mm
Art. N° | Finish | Unit price | |
---|---|---|---|
97.46077.22 | natural anodized EV1 | CHF 55.00 / metre | |
97.46077.24 | inox effect | CHF 65.00 / metre | |
97.46077.27 | BlackLine RAL 9005 matt | CHF 65.00 / metre |
Pfostenprofil AUGUSTA 3-seitig
42 x 42 mm, aluminium, screwed on, L = 5500 mm
42 x 42 mm, aluminium, screwed on, L = 5500 mm
Art. N° | Finish | Unit price | |
---|---|---|---|
97.46078.22 | natural anodized EV1 | CHF 55.00 / metre | |
97.46078.24 | inox effect | CHF 65.00 / metre | |
97.46078.27 | BlackLine RAL 9005 matt | CHF 65.00 / metre |
Pfostenprofil AUGUSTA 2-seitig 135°
aluminium, screwed on, L = 5500 mm
aluminium, screwed on, L = 5500 mm
Art. N° | Finish | Unit price | |
---|---|---|---|
97.46079.22 | natural anodized EV1 | CHF 55.00 / metre | |
97.46079.24 | inox effect | CHF 65.00 / metre | |
97.46079.27 | BlackLine RAL 9005 matt | CHF 65.00 / metre |
Fuss für Pfostenprofil AUGUSTA
42 x 42 mm, aluminium, screwed on
42 x 42 mm, aluminium, screwed on
Art. N° | Finish | Unit price | |
---|---|---|---|
97.46075.20 | raw vitral 45 | CHF 35.00 / unit |
Bemusterungs-Set AUGUSTA
aluminium, L = 150 mm
aluminium, L = 150 mm
Art. N° | Finish | Unit price | |
---|---|---|---|
97.46420.22 | natural anodized EV1 | on request |
